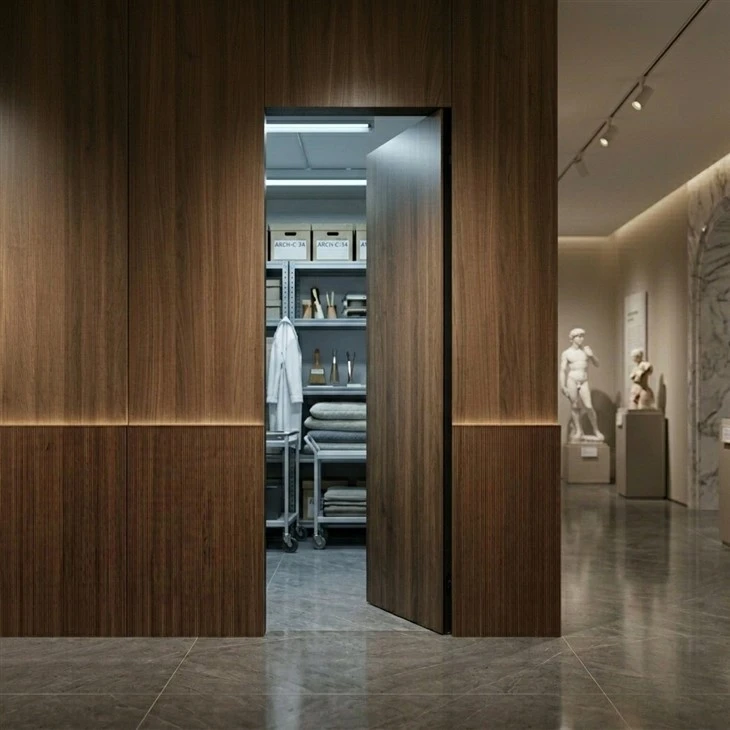

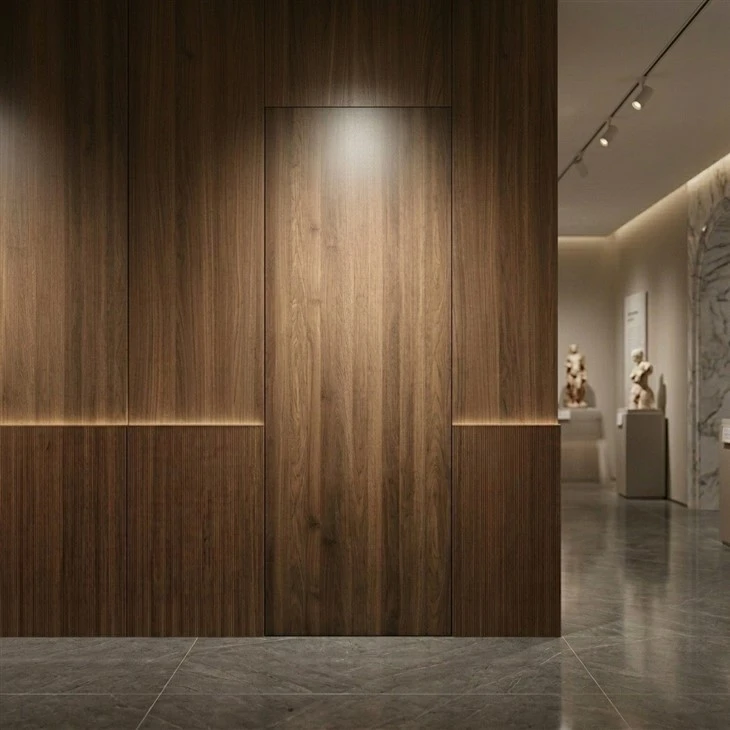

Hidden Frame Door
video

Hidden Frame Door

Surface Finishing: Melamine Paper / PVC Veneer
Feature: Invisible, Frame-less, Waterproof, Soundproof
Application: Museum, Art Gallery, Living Room, Office Room
Opening Style: Push and Pull
Brand Name: DYWM
Place of Origin: China
Main Material: Composite Board + Solid Wood
MOQ: 10 Sets
Certificates: CE, COO
Warranty: 3 Years
Send Inquiry

Description

Technical Parameters

What Is a Hidden Frame Door?



As a reputable manufacturer, our factory produces hidden frame doors, which constitute a complete concealed frame door system. They are suitable for procurement needs in both commercial and residential projects, and are not merely a plain door without obvious decorative lines. The load-bearing structure frame is pre-designed and can be embedded in the wall structure, ensuring that the door panel fits perfectly with the adjacent wall finish. This design presents a simple and minimalist appearance style, which is highly favored by architects, interior designers, and general contractors. It supports custom sizes and large-scale order delivery, and is very suitable for high-end interior decoration projects.



Core Process: Vacuum Membrane Pressing and Forming Technology



The core of this product lies in the combination of two major processes: "molding" and "vacuum forming", mainly applied to Medium Density Fiberboard (MDF) substrates.


01


Substrate Treatment

Door leaves and wall panels usually use environmentally friendly E1 grade or higher standard MDF as the substrate. MDF features uniform density, stable structure, and resistance to deformation, making it suitable for complex mechanical processing.


02


3D Molding

Through high-precision CNC engraving or mold pressing, specific concave-convex textures and lines are formed on the MDF surface. These shapes can be classic European carvings, minimalist geometric lines, or imitation solid wood grain textures.


03


PVC Vacuum Membrane Lamination

PVC film is covered on the surface of the formed substrate. Under high temperature (usually below 200°C) and vacuum environment, the PVC film fits tightly on the substrate with concave-convex shapes. This process not only endows the door panel with rich colors and textures (such as solid color RAL color chart or simulated wood grain), but also ensures that the film perfectly wraps the concave-convex edges without bubbling or degumming.

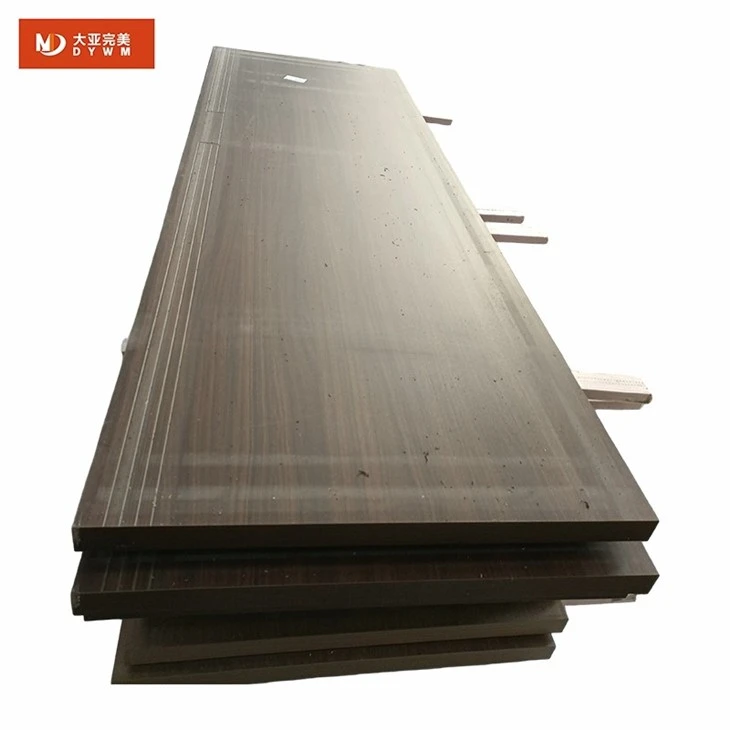

Hidden Frame Door sample



Product Attributes



Product Name

Hidden Frame Door

Finishing

Pre-fininshed

Application

Museum, Art Gallery, Hotel Room, Living Room,Bedroom, Villa

Veneer

Melamine Paper/PVC Film + MDF/HDF Board

Skeleton

LVL Board

Core Filling

Soundproof Timber, Solid Wood, Tubular Particle Board, Graphene Board

Door Way Size

2100x900mm

Wall Thickness Range

90~300mm

Door Leaf Size

2050x830x50mm,2050x830x55mm

Colour

Bionic Wood Grain, Solid Colour without Texture, Glossy or Customized

Accessories

Frame, Wall Panel, Lock Set, Invisible Hinge

Frame Material

Melamine/PVC + MDF + Solid Wood

Wall Panel Material

Melamine/PVC + Particle Board

Package

Soft Edge Protectors + Cushioning Foam + PE Bag + Carton+Pallet



Hidden Frame Construction & Engineering



Available Door Constructions



Solid Core Hidden Frame Door

Recommended for: Hotels, Luxury Villas, Executive Offices.

Benefits: Better sound insulation, Improved durability, Higher hardware holding strength.

Honeycomb Core Door

Recommended for: Apartment Projects, Residential Developments.

Benefits: Lightweight, Cost-efficient, Easy installation.

Acoustic Door Construction

Optional solution for offices and hospitality projects.

Moisture-Resistant Construction

Suitable for humid interior environments.



solid core hidden frame door
acoustic flush door
concealed frame door system
hidden frame wood door



System Components

Concealed Aluminum Frame
Embedded within drywall or masonry walls.

Flush Door Leaf
Installed level with the finished wall surface.

Concealed Hinges
Invisible after installation while allowing precise adjustment.

Magnetic Lock System
Maintains a clean appearance without visible latches.

Architectural Finishes
Compatible with paint, veneer, wallpaper, HPL, and decorative panels.



Material Advantages



Paint-free and Eco-friendly

Since the surface is already covered with PVC film, no additional paint spraying is required, avoiding the release of harmful substances such as formaldehyde and benzene, meeting the high environmental requirements of modern homes.

Strong Durability

High-quality PVC film has the characteristics of wear resistance, scratch resistance, and corrosion resistance. Compared with traditional painted doors, PVC surfaces are easier to clean and maintain, and not easy to fade.

High Stability

Internal fillers can be selected from MDF strips, honeycomb paper or solid wood squares according to needs, combined with wood with moisture content controlled at 10-12%, to ensure that the door leaf maintains dimensional stability under different climatic conditions (including dry areas), preventing cracking or deformation.

Edge Banding Process

Adopting thickened PVC edge banding tape (such as 80 dmm thickness) effectively prevents the edge of the door leaf from degumming due to moisture or impact, extending the service life.



Cutaway View of Invisible Door Construction



1. Design Features of Hidden Frame Doors

  • Visual Integration: Hidden frame doors (also called invisible door frames) are installed flush with the wall or are nearly invisible after installation. When the door leaf is closed, it forms a complete plane with the wall surface. This design greatly simplifies spatial lines and creates a minimalist, modern visual effect.
  • Style Fusion: The concave-convex molding of PVC vacuum membrane pressed doors can be perfectly combined with hidden frames. For example, choosing a PVC door panel with shallow relief texture can add layered detail while maintaining overall simplicity, avoiding monotony.
  • Flexible Customization: Supports customization in multiple sizes (width 500–1000 mm, height 1450–2100 mm, thickness up to 40–45 mm), and can be matched with different hardware accessories (such as invisible hinges, silent locks) to achieve a true "frameless" visual effect - ideal for spaces pursuing design integrity.



structure invisble door



2. Selection & Maintenance Tips for Hidden Frame Doors

  • Check Adhesion Strength: High-quality products have PVC film firmly bonded to the substrate. Test by gently scraping the corners with a fingernail - there should be no lifting or peeling.
  • Inspect Surface Details: Authentic molded doors have smooth, uniform surfaces with clear, sharp concave-convex molding, free of grainy texture or bubbles.
  • Regular Cleaning: Simply wipe with a soft dry cloth or slightly damp cloth. Avoid using strong acid or alkaline cleaners to protect the PVC film layer.



Products application



One May Dee Show Furniture Co., Ltd.



hidden interior door

Integrated concealed door woodwork design for art museums

PVC hidden door

Real-life example of concealed doors in exhibition halls

PVC invisibel door

Real-life example of concealed doors in exhibition halls

Application Scenarios and Styles

  • Modern Minimalist Style: Solid color PVC film (such as white, gray, black) paired with simple concave-convex lines, suitable for modern, Nordic, minimalist decoration styles.
  • New Chinese/European Style: PVC door panels with simulated wood grain or classic carved shapes, combined with hidden installation, can retain traditional charm while integrating into the clean sense of modern space.
  • Universal for Commercial and Residential Use: Suitable for indoor spaces such as bedrooms, living rooms, offices, museums, art exhibition centers, hotel rooms, especially suitable for places pursuing spatial integrity and design sense.



Why Choose One May Dee Show Furniture Co., Ltd.



Choosing the right hidden frame door manufacturer is essential for achieving consistent product quality, smooth project execution, and long-term installation performance. One May Dee Show Furniture Co., Ltd. provides complete hidden frame door solutions designed for distributors, contractors, developers, architects, and project buyers worldwide.



Complete Door System Supply

We can supply complete hidden frame door systems, including:

  • Door Leaf
  • Concealed Aluminum Frame
  • Hidden Hinges
  • Magnetic Locks
  • Door Handles
  • Installation Accessories

Multiple Surface Finish Options

To match different interior styles and market preferences, we offer:

  • Paint-Ready Surfaces
  • Wood Veneer Finishes
  • Melamine Finishes
  • PVC Finishes
  • HPL Finishes
  • Customized Decorative Finishes

Project-Based Export Experience

Our products are suitable for:

  • Apartment Projects
  • Hotel Developments
  • Luxury Villas
  • Office Buildings
  • Commercial Interiors
  • Architectural Projects

We understand the requirements of international construction and interior fit-out projects and can provide tailored manufacturing support.

Professional Hidden Door System Manufacturing

We specialize in the production of hidden frame doors, flush wall doors, invisible doors, and customized interior door solutions. Our manufacturing process focuses on structural stability, precise dimensions, and seamless wall integration.

OEM hidden frame door manufacturer

OEM & Private Label Manufacturing

We support OEM production and private label programs for distributors, wholesalers, building material suppliers, and door brands seeking customized products and packaging solutions.

flush wall door manufacturer

Strict Quality Control

Each hidden frame door system undergoes inspection before shipment to ensure dimensional accuracy, surface quality, frame compatibility, and hardware functionality.

custom hidden frame door system

Custom Design & Engineering Support

Every project has unique requirements. We provide customized solutions based on architectural drawings, opening dimensions, wall structures, surface finishes, and hardware specifications to ensure the hidden door system fits the project perfectly.

architectural door system supplier

Reliable Global Supply Partner

With professional production capabilities, flexible customization options, export packaging solutions, and responsive technical support, One May Dee Show Furniture Co., Ltd. is committed to helping customers deliver high-quality hidden frame door projects efficiently and successfully.



Certifications



Certifications

One May Dee Show Furniture Co., Ltd.

CE Certificate

CE Certificate

Fire-Rated hidden wood door

Fire-Rated 30mins

ISO9001 Certificate

ISO9001 Certificate

ISO14001 Certificate

ISO14001 Certificate

ISO45001 Certificate

ISO45001 Certificate

Novelty of Anti-Collision Door Patent

Novelty of Anti-Collision Door Patent





Request a Customized Hidden Frame Door Solution

Send us your drawings, specifications, dimensions, and project requirements. Our team will recommend the most suitable hidden frame door system and provide a professional quotation.



FAQ



Q: What is the difference between a hidden frame door and a traditional door?

A: Traditional doors use visible frames and architraves, while hidden frame doors conceal these elements inside the wall structure to achieve a minimalist architectural look.

Q: Can hidden frame doors be painted to match the wall?

A: Yes. Paint-ready surfaces allow the door to blend seamlessly with surrounding wall finishes.

Q: Are hidden frame doors suitable for hotel and apartment projects?

A: Yes. Hidden frame doors are widely used in apartments, hotels, luxury residences, offices, and commercial interiors.

Q: Do you supply complete hidden frame door systems?

A: Yes. One May Dee Show Furniture Co., Ltd. can supply complete systems including door leaves, concealed frames, hidden hinges, magnetic locks, and related accessories.



How to Partner with Us

One May Dee Show Furniture is a professional integrated source factory for wooden doors, wall panels, and cabinets. If you have needs for museum interior doors, floating cabinets, hidden doors, interior melamine doors, PVC doors, WPC doors, grille wall panels, wardrobes, or kitchen cabinets, please contact us.
