Door With Hidden Door Hinges

"Door With Hidden Door Hinges" refers to a door equipped with invisible hinges, with the key terms being Hidden Hinge or Concealed Hinge. Its characteristic feature is that the hinges are completely invisible when the door is closed, achieving a minimalist and seamless visual effect. Hidden door hinges, also known as invisible hinges or recessed hinges, are hardware components specifically developed for modern minimalist architecture and interior design. Their core design concept is to maintain the normal opening and closing function of the door leaf while achieving visual "complete concealment" or "near invisibility," thereby eliminating the visual disruption caused by traditional exposed hinges and creating a seamless, tidy spatial aesthetic.

I. Core Definition and Advantages

Unlike traditional surface-mounted hinges, hidden hinges are typically embedded within the door leaf and door frame or completely concealed by special mechanical structures when the door is closed. Their main advantages include:

• Aesthetic Value: They provide a minimalist, smooth sense of line, suitable for modern, luxurious, and seamless architectural designs. They create a fully smooth and flush appearance when closed.
• Spatial Integration: They allow the door to blend seamlessly with walls, cabinets, or furniture, enhancing the coherence of the overall design.
• Functional Retention: Despite their concealed appearance, they maintain structural integrity and smooth operation.
• Wide Application: They are used in applications ranging from high-end cabinets to concealed entrances, secret rooms, and large architectural entrances.

II. Selection and Installation Recommendations

• Accurate Measurement: Before installation, confirm the door leaf thickness, weight, and required opening angle.
• Professional Installation: Especially for sliding and pivot hinges, it is recommended that professionals use specialized tools for installation to ensure long-term stability and safety.
• Matching Hardware: For the best invisible effect, consider pairing with invisible magnetic latches or touch-release mechanisms, avoiding traditional handles that may disrupt the overall visual effect.
• Maintenance Inspection: Regularly check the tightness of hinge screws and lubrication status, especially for frequently used hidden doors, to ensure smooth operation and long service life.

Hidden door hinges are not only functional hardware components but also important tools in modern interior design for realizing the "less is more" aesthetic concept. Correct selection and installation of such hinges can significantly enhance the overall quality and user experience of a space.

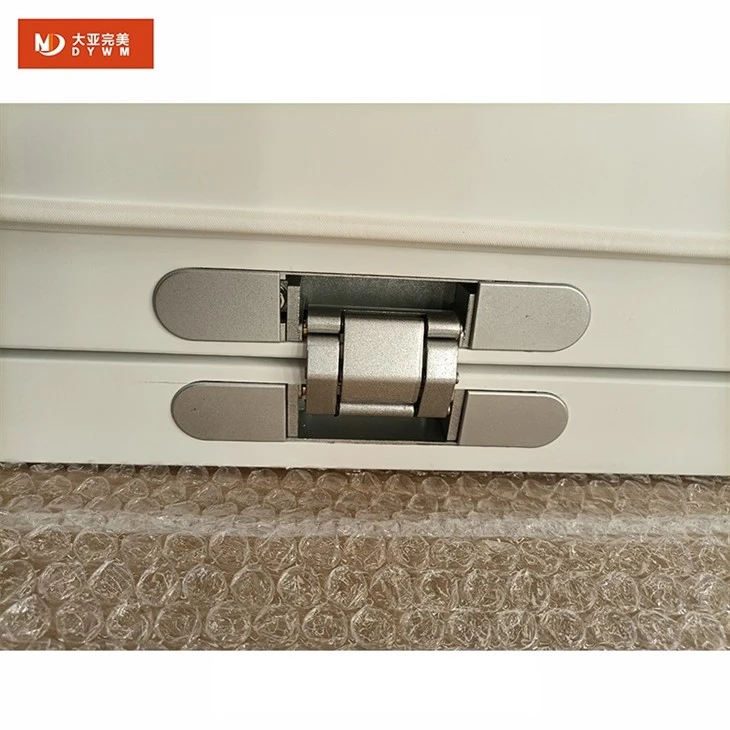

3D invisible hinges, formally known as "3D adjustable concealed hinges," are an indispensable core hardware accessory in modern minimalist home design and high-end door and window systems. Through an embedded installation method, they completely conceal the mechanical moving parts within the door leaf and frame, achieving a visually "invisible" effect. They also possess high-precision 3D adjustment capabilities, solving the pain points of traditional hinges such as difficulty in fine-tuning after installation, easy sagging and misalignment, and unsightly appearance.

I. Core Definition and Working Principle

3D invisible hinges are a type of hinge connection accessory with a concealed installation design that completely encloses the frame and leaf profiles. Its core working principle lies in a special structural design that completely encloses all moving parts such as linkages and pivots within the cover, profile, or mounting box when the door with hidden door hinges is closed, achieving an appearance with no exposed parts.

• Concealment Mechanism: Utilizing specially designed cross-sectional grooves (such as "F"-shaped grooves), the hinge body is embedded into the side of the door or the inside of the profile. When closed, the door leaf is flush with the door frame, visually forming a complete wall or cabinet surface effect.
• Three-Dimensional Adjustment Principle: Through the coordinated operation of the base slide rail, eccentric adjustment screw, and vertical lifting structure, it supports independent fine-tuning in three dimensions: X-axis (left/right/horizontal), Y-axis (up/down/vertical), and Z-axis (front/back/depth). This design is independent of wall flatness or pre-embedded depth, allowing for precise alignment of the door leaf after installation.

II. Detailed Explanation of Three-Dimensional Adjustment Function

Three-dimensional adjustability is a key advantage of this type of hinge compared to ordinary concealed hinges. The specific adjustment directions are as follows:

• Up/Down Adjustment (Y-axis): Solves the problem of door leaf sagging due to gravity, adjusting the gap between the bottom of the door leaf and the ground to ensure smooth opening and closing without scraping the floor.
• Left/Right Adjustment (X-axis): Adjusts the width of the gap between the door leaf and the door frame, ensuring a uniform door gap and improving aesthetics.
• Front/Back Adjustment (Z-axis): Adjusts the depth position of the door leaf relative to the door frame, ensuring that the door leaf is completely flush with the wall or cabinet surface when closed, eliminating height differences.

The adjustment process typically only requires a hex wrench or screwdriver to tighten the eccentric screw or move the base slider, eliminating the need to disassemble the door panel and greatly reducing the difficulty of later maintenance.

III. Installation and Maintenance Recommendations

Installation Points:

• Slotting and Positioning: The hinge direction (left-opening/right-opening) must be determined based on the door lock position, and the slot line position must be accurately calculated. Strict error control is required; protruding parts must be aligned with the door panel and door frame.
• Component Fixing: After fixing the upper and lower blades separately, a 90° opening and closing test must be performed to verify flexibility. If there is any jamming, rework is required.
• Dynamic Adjustment: After installation, multi-dimensional fine-tuning can be performed using the adjusting screws to resolve issues such as door panel sagging and misalignment, ensuring proper door with hidden door hinges dynamic matching.

Maintenance:

Most products use oil-free lubrication technology or durable materials, requiring minimal daily maintenance.

Regularly check if the adjusting screws are loose, keep the hinges clean, and prevent dust accumulation from affecting smoothness.

If unusual noises or blockages occur, check the wear of the nylon gaskets or perform a three-dimensional fine-tuning.

With its concealed aesthetic value, precise adjustment capabilities, and superior physical properties, the three-dimensional invisible hinge has become an important choice in the high-end home decoration and architectural hardware industry, perfectly balancing functional practicality and visual artistry.



One May Dee Show Furniture Co., Ltd.



Common Application Scenarios:

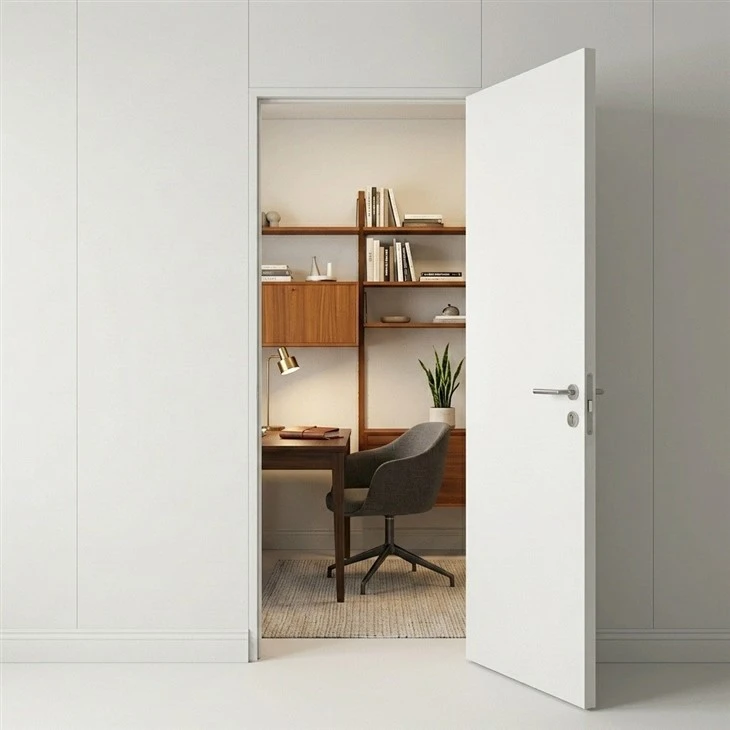

• Modern Home Interior Design: Hidden doors used in living rooms, feature walls, study partitions, and bedrooms create a seamless and unified wall appearance. Commonly used to conceal storage rooms, studies, or private areas, emphasizing wall integrity and minimalist aesthetics.
• High-End Cabinet Systems: In kitchens and wardrobes, European-style cup-shaped hinges are key to achieving handle-less, flat facade designs.
• Commercial and Public Spaces: Used in hotels and offices to conceal equipment rooms, server rooms, or emergency exits, maintaining the purity of the space design.
• High-End Custom Furniture: Wardrobes, cabinets, bookcases, etc., maintaining a clean appearance and avoiding hardware that disrupts the design style.
• Special Function Doors: Such as hidden bookshelf doors, auxiliary support for pocket doors, and structural connections for rotating cylinder doors.

Core Advantages:

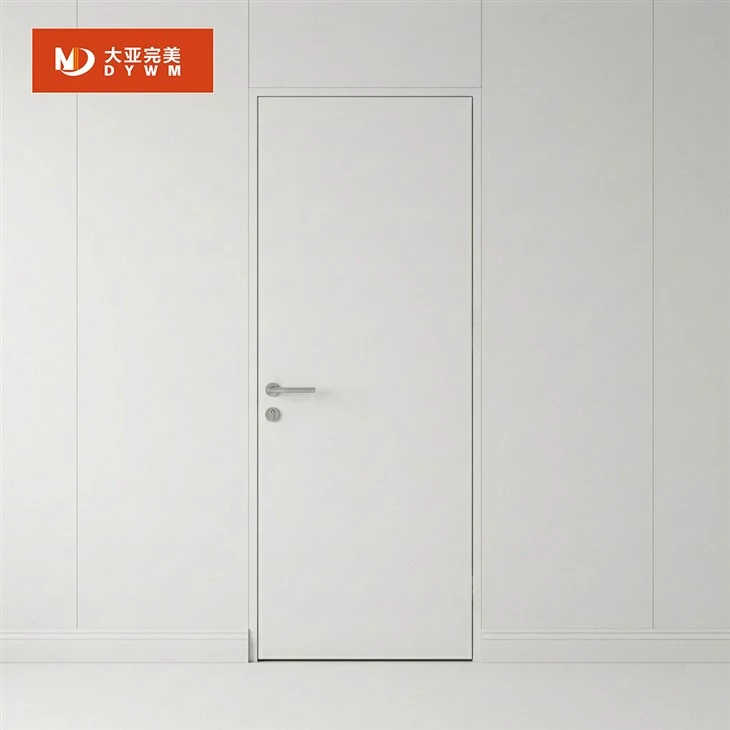

1. Ultimate Aesthetics: Doors with hidden door hinges are completely invisible when closed, achieving a "door-invisible" visual effect, consistent with modern minimalist and understated luxury interior design styles.
2. Precise Alignment: The three-dimensional adjustment function corrects for wall deformation and installation errors, ensuring tightness and smoothness for long-term use.
3. Silent and Durable: Equipped with nylon sound-absorbing pads or a self-lubricating structure, opening and closing is silent and smooth; high-strength materials (cold-rolled steel, stainless steel) ensure long-term stability.
4. Enhanced Sealing: Concealed installation helps maintain the continuity of the sealing strip, enhancing sound insulation, heat preservation, and dust prevention.

How to Partner with Us

One May Dee Show Furniture is a professional integrated source factory for wooden doors, wall panels, and cabinets. If you have needs for concealed closet doors, floating cabinet, hidden doors, interior melamine doors, PVC doors, WPC doors, grille wall panels, wardrobes, or kitchen cabinets, please contact us.
